Elegant |
|
Good quality |
|
User Friendly |
100% Front maintenance system designed to be " User Friendly." Enables all maintenance jobs to be performed easily, speedily and efficiently. |
|

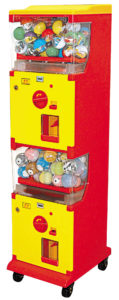

M300
|
6 MAJOR STRIKING FEATURES
1. Elegant design
Modern and prestigious look, designed to absolutely attract more customers.
2. Good quality
Durable, reliable, longlasting.
3. User friendly
(100% FRONT MAINTENANCE SYSTEM)
It is unique such that all maintenance jobs can be EASILY, SPEEDILY AND EFFICIENTLY COMPLETED.
4. Advance coin mechanism
Measures size and weight of coin. If the wrong coin is inserted it can be returned to “coin-return pocket.”
5. Upper and lower joint
With the upper and lower units incorporated as one, the M300 does not require any pipe fixture stands and it is simple to set up.
6. Side to side joint
There is a joint system on the back of the machine, where two or even more machines may be connected side by side to create an attractive capsule machine corner. |
Vending Machine M300, M310
|
M 300
|
M310
|
Size:
-W345 x H1335 x D450 MM (Net)
-W370 x H1380 x D485 MM (Carton) |
Size:
-W345 x H1910 x D450 MM (Net)
-W370 x H1955 x D485 MM (Carton)
|
Measurement:
-0.2477 M3/Carton
-228 set / 40' Container
|
Measurement:
-0.3508 M3/Carton
-162 sets / 40' Container |
|
Weight:
-Net W. 24KG - Gross W.28.40KG
|
Weight:
-Net W. 36.60KG - Gross W.41KG |
Capacity:
-130 Capsules x 2 (A06: 48x54MM)
-75 Capsules x 2 (A08: dia: 62MM)
-60 Capsules x 2 (A09: 65 x 69MM)
|
Capacity:
-130 Capsules x 3 (A06: 48x54MM)
-75 Capsules x 3 (A08: dia: 62MM)
-60 Capsules x 3 (A09: 65 x 69MM) |
| More details... |
|
M300 - Inside
|
M300 - Connected
|
|
